Powder coating equipment is used to apply a dry powder material to metal and other suitable surfaces before the material is cured into a durable finish.
Unlike liquid coating methods, the process uses electrically charged powder particles that are attracted to a prepared surface and later heated inside a curing oven.
The basic process developed from industrial coating technologies designed to improve surface protection and appearance while reducing the need for liquid solvents. Today, powder coating equipment can be found in manufacturing plants, metal fabrication facilities, appliance production, automotive component production, and architectural applications.
Main Equipment Components

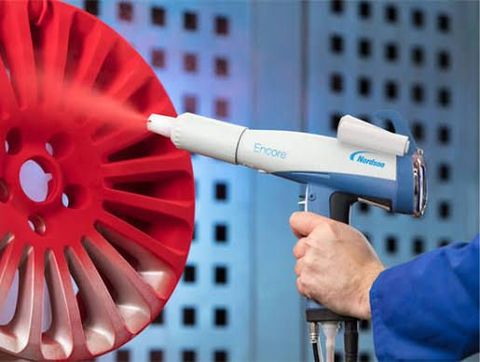

A powder coating system normally includes several connected components. The powder spray gun applies the coating, while a powder feed system moves the material toward the gun. A control unit regulates application settings, and an oven provides the controlled heat required for curing.
Other components can include recovery systems, booth enclosures, compressed-air equipment, grounding arrangements, and conveyor systems. Each part affects how consistently powder reaches the workpiece and how evenly the final coating develops.
| Equipment | Main Function | Process Stage |
|---|---|---|
| Powder Spray Gun | Applies charged powder | Application |
| Feed System | Transfers powder | Material Handling |
| Control Unit | Adjusts operating parameters | Application |
| Spray Booth | Contains overspray | Application |
| Curing Oven | Uses controlled heat | Curing |
| Recovery System | Collects suitable overspray | Material Handling |
Why Finishing Quality Matters
Finishing quality depends on more than the powder material itself. Surface preparation, equipment settings, grounding, powder distribution, film thickness, airflow, and curing conditions can all influence the finished surface.
Poor control may result in uneven coverage, excessive powder buildup, thin areas, poor adhesion, surface defects, or inconsistent color. These issues can affect both appearance and the protective characteristics of the coating.
Factors That Influence Results
Several operating factors deserve attention when evaluating powder coating equipment. Grounding helps charged powder particles transfer effectively to the workpiece, while correct spray settings influence particle distribution.
Oven conditions are also important. The coating needs to reach the required metal temperature for the appropriate curing period. Air temperature inside an oven does not always represent the actual temperature of the workpiece, so process monitoring can provide useful information.
Common Quality Considerations
Operators and production teams commonly review:
- Surface cleanliness before coating
- Workpiece grounding
- Powder flow and spray pattern
- Coating thickness
- Booth airflow
- Oven temperature
- Curing duration
- Powder storage conditions
- Recovery-system operation
- Visual consistency after curing
These factors are interconnected. A change in one part of the process can influence another, making systematic inspection useful when investigating coating variations.
Tools and Resources for Powder Coating
Several practical resources can help people understand and manage powder coating processes. Equipment manuals provide operating specifications, maintenance information, safety instructions, and recommended settings for specific systems.
Digital coating-thickness gauges can help measure the applied film after curing. Infrared temperature instruments and oven-monitoring tools can also help track heating conditions, although measurement methods should match the equipment and coating process.
Useful Reference Resources
Technical websites from powder coating associations, equipment manufacturers, coating-material producers, and industrial standards organizations can provide educational information. Their resources may include process guides, terminology references, troubleshooting documents, technical data sheets, and application guidance.
Calculators and worksheets can also help organize measurements such as coating thickness, oven temperature readings, conveyor speed, and production observations. Keeping these records can make it easier to identify changes between production batches.
Process Checks
A simple inspection routine can include checking the workpiece before application, observing the spray pattern during coating, recording relevant oven conditions, and examining the cured surface afterward. These checks help separate preparation issues from application or curing issues.
Frequently Asked Questions
What is powder coating equipment used for?
Powder coating equipment applies dry coating powder to prepared surfaces and supports the curing process. Typical equipment includes spray guns, powder feed systems, control units, booths, and curing ovens.
How does powder coating equipment affect finishing quality?
Equipment settings influence powder distribution, transfer efficiency, coating thickness, and surface consistency. Grounding, airflow, spray settings, and curing conditions can all affect the finished coating.
What should be checked before using powder coating equipment?
Important checks include surface preparation, grounding, powder condition, spray equipment settings, booth airflow, and curing-oven operation. Equipment instructions should be followed for the specific system.
Why is a curing oven important in powder coating?
The curing oven provides controlled heat that allows the applied powder to melt and develop its intended coating properties. The required temperature and duration depend on the coating material and application specifications.
Can coating thickness be measured after powder application?
Yes. Coating-thickness gauges can be used to measure cured coating thickness on suitable substrates. Measurement procedures should account for the substrate and the type of gauge being used.
Conclusion
Powder coating equipment brings together application, material handling, environmental control, and curing functions within one coating process. Finishing quality can be influenced by preparation, grounding, spray conditions, coating thickness, and oven control. Understanding these factors provides useful context for identifying common coating variations. Technical manuals, measurement tools, and process records can support consistent evaluation of powder coating operations.
