Rolling machines are industrial metal-forming equipment used to bend, shape, reduce, or curve metal materials according to specific dimensional requirements.
They are widely used in metal fabrication, steel production, construction, automotive manufacturing, pressure-vessel production, and industrial equipment manufacturing.
Depending on their configuration, rolling machines can process sheets, plates, bars, tubes, and other metal forms. Modern equipment can incorporate hydraulic systems, CNC controls, automated positioning, and digital monitoring to improve repeatability and production control.
What Are Rolling Machines?
Rolling machines use rotating rolls to apply controlled force to metal material. The material passes between or around the rolls, causing it to deform into a required shape.
The machine configuration depends on the intended operation. Some machines primarily reduce material thickness, while others curve flat plates into cylindrical or conical forms.
Common applications include:
- Plate bending
- Sheet forming
- Thickness reduction
- Cylindrical forming
- Cone forming
- Tube processing
- Profile forming
- Metal fabrication
How Rolling Machines Work
A typical rolling operation involves feeding metal between rotating rolls. The rolls apply force while moving the material through the machine.
The basic process can involve:
- Positioning the workpiece.
- Adjusting the roll gap or position.
- Feeding the material into the machine.
- Applying controlled rolling force.
- Repositioning or adjusting the rolls.
- Repeating passes when necessary.
- Inspecting the finished shape or dimensions.
The exact procedure varies according to machine type, material thickness, material grade, required radius, and final geometry.
Types of Rolling Machines
Three-Roll Rolling Machines
Three-roll machines use three primary rolls arranged to provide controlled bending and forming. They are commonly used for cylindrical and curved components.
Different configurations include symmetrical and asymmetrical arrangements, each suited to particular forming requirements.
Four-Roll Rolling Machines
Four-roll systems use four rolls to provide additional control over material positioning and bending. They can be useful for precision plate forming and applications involving larger or thicker workpieces.

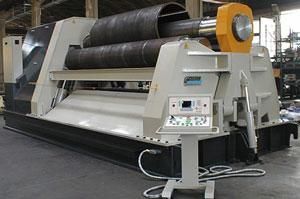

Plate Rolling Machines
Plate rolling machines are designed to curve metal plates into cylindrical, oval, or conical shapes.
They are commonly used for:
- Storage tanks
- Pressure vessels
- Pipes
- Cylindrical shells
- Structural components
- Industrial vessels
Sheet Metal Rolling Machines
Sheet metal rolling machines are generally designed for thinner materials. They can be used to produce curved panels, ducts, enclosures, and other fabricated components.
Hydraulic Rolling Machines
Hydraulic rolling machines use hydraulic power to control roll movement and forming force. They can provide substantial forming capability for heavy plates and industrial applications.
CNC Rolling Machines
CNC rolling machines use computerized controls to manage roll positioning and forming parameters. Depending on the machine configuration, CNC control can improve repeatability and reduce manual adjustments.
Rolling Machine Equipment Comparison
| Machine Type | Typical Material | Common Application | Control |
|---|---|---|---|
| Three-Roll Machine | Sheet and plate | Cylindrical forming | Manual/Hydraulic/CNC |
| Four-Roll Machine | Plate and sheet | Precision bending | Hydraulic/CNC |
| Plate Rolling Machine | Heavy plate | Tanks and vessels | Hydraulic/CNC |
| Sheet Rolling Machine | Thin sheet | Panels and ducts | Manual/Powered |
| Hydraulic Rolling Machine | Thick metal | Heavy fabrication | Hydraulic |
| CNC Rolling Machine | Various metals | Repetitive precision work | CNC |
Industrial Rolling Machines Applications
Industrial rolling machines are used across multiple manufacturing sectors.
Steel Fabrication
Steel plates can be rolled into cylindrical shells, structural components, pipes, and industrial vessels. Machine capacity must be matched to plate thickness, width, material grade, and required bending radius.
Pressure Vessel Manufacturing
Pressure vessels frequently require precisely formed cylindrical or conical sections. Rolling equipment helps create these shapes before welding and subsequent fabrication processes.
Pipeline Production
Rolling equipment can contribute to the formation of large-diameter pipe sections and related components. The machine configuration depends on pipe dimensions and material characteristics.
Construction Equipment
Construction machinery can include curved structural components, housings, tanks, and other fabricated parts that require controlled metal forming.
Automotive Manufacturing
Automotive production uses various metal-forming technologies for body components, exhaust-related parts, structural sections, and other applications.
Metal Rolling Process
Metal rolling can refer to several different forming processes depending on the equipment and objective.
Hot Rolling
Hot rolling processes metal at elevated temperatures where the material becomes easier to deform. It is commonly used in large-scale steel production for producing plates, sheets, structural sections, and other products.
Cold Rolling
Cold rolling takes place at or near room temperature. It can provide improved dimensional accuracy, surface finish, and certain mechanical characteristics.
Plate Bending
Plate bending uses controlled roll movement to transform flat plates into curved or cylindrical forms. Multiple passes may be required to achieve the specified geometry.
Factors Affecting Rolling Performance
Several variables influence the outcome of a rolling operation.
Material Properties
Yield strength, tensile strength, ductility, and material thickness affect the force required for forming.
Plate Thickness
Thicker plates generally require greater forming capacity and stronger machine construction.
Bending Radius
The required radius influences roll positioning and the number of passes necessary to achieve the desired shape.
Roll Diameter
Roll diameter affects forming behavior and the minimum achievable radius for particular applications.
Friction
Friction between the workpiece and rolls influences material movement and forming consistency.
Springback
After forming force is removed, metal can partially return toward its original shape. Operators and CNC systems may compensate for this effect during the forming process.
Hydraulic Rolling Machines
Hydraulic systems are widely used in heavy-duty rolling equipment because they can provide substantial controlled force.
Hydraulic machines can offer:
- High forming capacity
- Controlled roll movement
- Adjustable pressure
- Automated positioning
- Suitable operation for heavy plates
Hydraulic components require appropriate maintenance, including inspection of hoses, seals, valves, pumps, and fluid conditions.
CNC Rolling Machines and Automation
Automation has changed how many modern rolling operations are controlled. CNC systems can store forming parameters and coordinate roll movements according to programmed sequences.
Automated systems may incorporate:
- Digital control panels
- Position sensors
- Hydraulic proportional valves
- Programmable controllers
- Automated roll positioning
- Job parameter storage
- Remote diagnostics
- Digital production monitoring
Automation can improve repeatability, particularly when multiple components require similar geometries.
Materials Processed by Rolling Machines
Rolling equipment can process many types of metals, depending on machine specifications.
Common materials include:
- Carbon steel
- Stainless steel
- Alloy steel
- Aluminum
- Copper
- Brass
- Titanium alloys
Each material behaves differently during deformation. Machine capacity and tooling should therefore be matched to the material's mechanical characteristics.
Quality Control in Rolling Operations
Quality control ensures that formed components meet dimensional and geometric requirements.
Manufacturers may inspect:
- Plate thickness
- Diameter
- Radius
- Straightness
- Roundness
- Edge alignment
- Surface condition
- Dimensional tolerances
Inspection methods can include mechanical measurement tools, laser measurement systems, templates, coordinate-based inspection, and other dimensional technologies.
For critical applications, additional testing may be performed after rolling and subsequent fabrication.
How to Choose Rolling Machine Equipment
Selecting suitable rolling machine equipment requires evaluation of both current and anticipated production requirements.
Determine Material Size
Identify the maximum plate or sheet width, thickness, and length that the machine must accommodate.
Evaluate Material Type
Different materials require different forming forces. Equipment specifications should be reviewed against the mechanical properties of the materials being processed.
Define the Required Shape
Determine whether the machine needs to produce cylinders, cones, arcs, or other profiles.
Consider Production Volume
Higher production volumes may justify CNC controls and automated positioning to improve repeatability and reduce manual setup activities.
Review Machine Capacity
Important specifications can include:
- Maximum rolling width
- Maximum material thickness
- Minimum bending diameter
- Roll diameter
- Forming force
- Motor power
- Hydraulic capacity
- Machine dimensions
Maintenance of Rolling Machines
Regular maintenance helps preserve forming accuracy and machine reliability.
Typical maintenance activities include:
- Inspecting rolls
- Checking bearings
- Examining hydraulic systems
- Monitoring lubrication
- Inspecting electrical connections
- Checking alignment
- Cleaning work surfaces
- Reviewing control systems
- Inspecting safety mechanisms
Roll surfaces should also be protected from damage because surface defects can affect the finished workpiece.
Common Rolling Machine Challenges
Material Springback
Springback can cause the finished component to differ slightly from the intended radius. Process parameters may need adjustment to compensate.
Edge Flatness
Some rolling processes can leave relatively flat areas near the plate edges. Pre-bending or specialized machine configurations can help address this issue.
Material Slippage
Insufficient friction or incorrect roll positioning can affect material movement. Proper machine setup is important for consistent forming.
Uneven Thickness
Material properties and rolling conditions can influence thickness distribution. Process monitoring and appropriate machine settings can help maintain dimensional consistency.
Frequently Asked Questions
What are rolling machines used for?
Rolling machines are used to form, bend, curve, or reduce metal materials. Common applications include plate bending, sheet forming, cylindrical fabrication, and industrial metal production.
What is a plate rolling machine?
A plate rolling machine is industrial equipment designed to bend metal plates into cylindrical, conical, or other curved forms.
What is the difference between three-roll and four-roll machines?
Three-roll machines use three primary rolls, while four-roll machines provide an additional roll for greater control over material positioning and forming.
Are CNC rolling machines suitable for industrial production?
CNC rolling machines can be useful for production environments requiring repeatable forming operations, automated positioning, and controlled processing parameters.
What factors should be considered when selecting rolling machines?
Important factors include material type, maximum thickness, material width, required bending radius, machine capacity, production volume, automation level, and dimensional requirements.
Conclusion
Rolling machines are important metal-forming systems used to produce curved, cylindrical, conical, and other engineered shapes. Three-roll, four-roll, plate, hydraulic, and CNC configurations provide different capabilities for sheet and plate processing.
Selecting appropriate rolling machine equipment requires careful evaluation of material properties, dimensions, forming radius, production requirements, machine capacity, automation, and quality-control needs. Proper maintenance and process control are equally important for maintaining consistent forming performance.
As manufacturing becomes increasingly automated, CNC controls, hydraulic positioning, sensors, and digital monitoring are helping modern rolling systems achieve greater repeatability and process control.
