Magnetic filtration is a separation technique that uses magnetic fields to capture ferrous and magnetically responsive particles from liquids, slurries, powders, or process streams.
It is widely used in industrial environments where metal contamination can affect product quality, equipment performance, or downstream processes.
Unlike conventional filtration methods that primarily depend on mesh size or filter media, magnetic filtration uses magnetic attraction to capture suitable particles. The technology can be incorporated into coolant systems, metalworking operations, food processing, chemical production, mining, recycling, and other industrial applications.
What Is Magnetic Filtration?
Magnetic filtration uses permanent magnets or electromagnets to attract and retain ferrous particles within a process stream. The magnetic elements are positioned so that contaminated material passes through or around the magnetic field.
Depending on the application, systems can capture:
- Iron particles
- Steel particles
- Ferrous fines
- Grinding debris
- Machining chips
- Magnetic scale
- Metal fragments
- Other magnetically responsive contaminants
The effectiveness depends on particle characteristics, magnetic strength, flow conditions, viscosity, equipment configuration, and the magnetic properties of the contaminant.
How Magnetic Filtration Works
A typical magnetic filter contains one or more magnetic elements positioned inside a housing or process chamber.
The basic process involves:
- Contaminated material enters the filtration system.
- The material passes through a magnetic field.
- Ferrous particles are attracted toward the magnetic elements.
- Captured particles accumulate on the magnetic surfaces.
- Cleaner material continues through the system.
- The collected material is periodically removed.
The magnetic field does not necessarily capture every type of particle. Non-ferrous materials such as aluminum, copper, and many stainless-steel grades may not respond strongly to conventional magnetic filtration.
Types of Magnetic Filtration Systems
Different system configurations are designed for different industrial conditions.

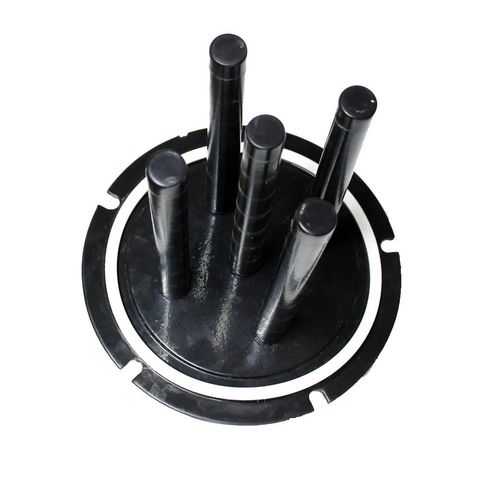

Magnetic Bar Filters
Magnetic bars contain permanent magnetic elements inside protective housings. They can be installed within chutes, pipelines, tanks, or other process equipment.
They are relatively simple and can be configured in different arrangements depending on flow requirements.
Magnetic Drum Filters
Magnetic drum systems use a rotating drum containing magnetic elements. As material passes across the drum, magnetic contaminants adhere to the magnetic surface and are separated from the primary material flow.
They are commonly used in bulk material handling and industrial separation applications.
Magnetic Plate Filters
Magnetic plate systems use magnetic plates positioned across a material stream. Ferrous particles are attracted to the plates while the primary material continues through the system.
These systems can be used for dry materials and certain liquid-processing applications.
Magnetic Grate Systems
Magnetic grates consist of multiple magnetic tubes arranged within a frame. Material passes through the grate, allowing ferrous particles to be captured by the magnetic surfaces.
They are often used in powder, granule, and bulk-material applications.
Electromagnetic Filters
Electromagnetic systems generate magnetic fields using electrical power. Their magnetic strength can be controlled according to process requirements.
These systems can be useful when variable magnetic intensity or higher separation forces are required.
Magnetic Filtration Equipment
Industrial magnetic filtration equipment can include several components depending on system design.
| Equipment Type | Typical Material | Primary Application |
|---|---|---|
| Magnetic Bars | Liquids and powders | Ferrous particle capture |
| Magnetic Grates | Powders and granules | Bulk material separation |
| Magnetic Plates | Dry materials | Metal contamination removal |
| Magnetic Drums | Bulk materials | Continuous separation |
| Magnetic Coolant Filters | Metalworking fluids | Machining debris removal |
| Electromagnetic Systems | Industrial streams | Adjustable separation |
| Inline Magnetic Filters | Process liquids | Pipeline filtration |
The appropriate configuration depends on the material, flow rate, particle size, temperature, viscosity, and required separation performance.
Industrial Magnetic Filtration Applications
Industrial magnetic filtration is used in many environments where ferrous contamination needs to be controlled.
Metalworking
Metalworking operations can generate fine ferrous particles through grinding, cutting, milling, drilling, and other processes. Magnetic coolant filtration can help remove these particles from metalworking fluids.
This can help maintain fluid cleanliness and reduce the circulation of abrasive metal debris.
Coolant Filtration
Magnetic coolant filtration systems are commonly incorporated into machining operations. The system captures ferrous particles before the coolant is returned to the production process.
Benefits can include:
- Reduced particle circulation
- Improved coolant cleanliness
- Lower contamination of downstream equipment
- Reduced accumulation of metal debris
- More consistent fluid management
Magnetic filtration is generally most effective when the contaminants have sufficient magnetic responsiveness.
Food Processing
Magnetic filtration can help detect and remove ferrous contamination from certain food-processing material streams. Magnetic equipment may be positioned at points where ingredients or bulk materials pass through processing systems.
Food-processing applications require appropriate hygienic design, materials, accessibility, and cleaning procedures.
Chemical Processing
Some chemical and industrial liquid streams can contain ferrous particles generated by equipment wear or raw-material contamination. Magnetic filtration can provide an additional separation stage when the contaminants are magnetically responsive.
Mining and Mineral Processing
Magnetic separation technologies are widely used in mineral-processing applications. Equipment configurations vary significantly according to mineral properties, particle sizes, moisture levels, and process objectives.
Magnetic Particle Filtration
Magnetic particle filtration focuses specifically on capturing ferrous particles from a process stream. Particle size is an important consideration, but it is not the only factor determining separation performance.
Other factors include:
- Magnetic susceptibility
- Particle shape
- Flow velocity
- Fluid viscosity
- Magnetic field strength
- Distance from the magnetic element
- Particle concentration
- Equipment geometry
Fine particles can behave differently from larger particles, making system design important for reliable separation.
Advantages of Magnetic Filtration
Magnetic filtration can provide several operational benefits in appropriate applications.
No Conventional Filter Media
Permanent magnetic systems can capture ferrous particles without relying on disposable filter cartridges or conventional filter media.
Low Mechanical Complexity
Many permanent-magnet filtration systems have relatively simple mechanical designs, which can simplify routine operation and maintenance.
Continuous Operation
Certain drum, grate, and inline configurations can operate continuously while collecting magnetic contaminants.
Protection of Downstream Equipment
Removing ferrous particles before they reach pumps, valves, machining systems, or other equipment can help reduce contamination and abrasive wear.
Reusable Magnetic Elements
Permanent magnetic components can generally be cleaned and reused, depending on system design.
Limitations of Magnetic Filtration
Magnetic filtration is not a universal replacement for all filtration technologies.
Important limitations include:
- Non-magnetic contaminants may pass through.
- Some weakly magnetic materials may require specialized systems.
- Separation efficiency depends on flow conditions.
- Very small particles may require high magnetic gradients.
- Excessive contamination can require frequent cleaning.
- System geometry influences capture performance.
For streams containing both magnetic and non-magnetic contaminants, magnetic filtration may be combined with other separation methods.
High-Intensity Magnetic Filtration
High-intensity magnetic filtration systems generate stronger magnetic fields or higher magnetic gradients than standard magnetic separators.
They can be considered for applications involving:
- Fine ferrous particles
- Weakly magnetic materials
- Difficult separation conditions
- High-purity processing requirements
- Specialized mineral applications
The required magnetic intensity should be determined according to material characteristics rather than simply selecting the strongest available system.
Factors for Selecting Magnetic Filtration Equipment
Choosing suitable magnetic filtration equipment requires evaluation of the complete process.
Material Characteristics
Determine whether the contaminants are strongly magnetic, weakly magnetic, or non-magnetic. Particle size, shape, concentration, and distribution should also be evaluated.
Flow Rate
Liquid and slurry systems must accommodate the required flow without creating unacceptable pressure changes or disrupting production.
Temperature
High-temperature processes may require magnetic materials and housings designed for elevated operating conditions.
Viscosity
Highly viscous fluids can influence particle movement and magnetic capture. System design should account for the fluid's operating characteristics.
Cleaning Requirements
Consider how frequently magnetic elements must be cleaned and whether manual, semi-automatic, or automated cleaning is appropriate.
Installation Configuration
Inline, plate, grate, drum, and other designs have different installation requirements. Available space and process layout should be considered before equipment selection.
Maintenance of Magnetic Filtration Systems
Routine maintenance helps maintain consistent filtration performance.
Typical maintenance activities include:
- Inspecting magnetic surfaces
- Removing accumulated particles
- Checking housings and seals
- Inspecting connections
- Monitoring flow conditions
- Checking for mechanical damage
- Verifying system cleanliness
Cleaning frequency depends on the contamination level and operating conditions.
Frequently Asked Questions
What is magnetic filtration?
Magnetic filtration is a separation process that uses magnetic fields to capture ferrous and other magnetically responsive particles from liquids, powders, slurries, or process streams.
What contaminants can magnetic filters remove?
Magnetic filters primarily capture ferrous particles such as iron fines, steel debris, machining particles, and other magnetically responsive contaminants.
What is magnetic coolant filtration?
Magnetic coolant filtration uses magnetic elements to remove ferrous particles from metalworking fluids generated during machining, grinding, cutting, and related processes.
Can magnetic filtration remove aluminum particles?
Conventional magnetic filtration is primarily intended for ferrous materials. Aluminum is non-ferrous and generally does not respond to standard permanent magnetic filtration systems.
How do I select industrial magnetic filtration equipment?
Consider the material characteristics, particle properties, flow rate, fluid viscosity, temperature, contamination level, installation configuration, cleaning requirements, and required separation performance.
Conclusion
Magnetic filtration provides an effective method for separating ferrous particles from suitable industrial process streams. Magnetic bars, plates, grates, drums, inline filters, and electromagnetic systems can be configured for applications ranging from metalworking and coolant management to food processing, chemical production, and mineral processing.
The effectiveness of a magnetic filtration system depends on more than magnetic strength. Particle characteristics, flow conditions, equipment geometry, operating temperature, viscosity, contamination levels, and maintenance requirements all influence performance.
By evaluating these factors systematically, industrial facilities can select magnetic filtration equipment that fits their specific process requirements and complements other filtration or separation technologies.
