Soil nailing rigs are specialized drilling machines used in geotechnical engineering to stabilize slopes, excavations, and retaining walls. The technique known as soil nailing reinforces natural ground by inserting steel bars (called soil nails) into drilled holes, then grouting them in place to create a reinforced soil mass.

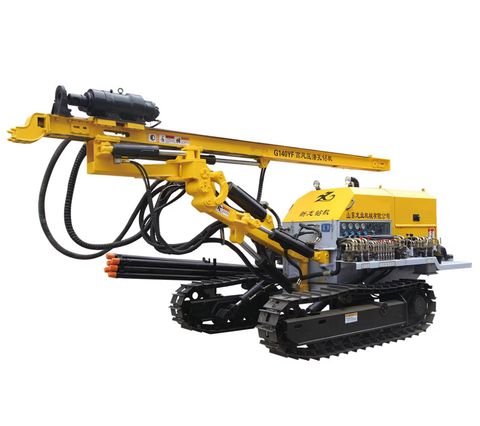

The concept developed from tunneling and rock bolting practices and is now widely applied in urban construction, highway expansion, railway cuttings, and infrastructure projects. Soil nailing rigs are typically mounted on crawler bases or excavators, allowing them to operate on uneven terrain or confined job sites.
A soil nailing system usually includes:
-
Drilled holes angled slightly downward
-
Steel reinforcing bars inserted into holes
-
Cement-based grout to bond the nail to surrounding soil
-
Shotcrete or facing panels applied to the exposed surface
The rig itself performs the critical drilling process. It must handle variable ground conditions such as clay, sand, weathered rock, or mixed strata. Modern rigs often feature hydraulic rotary-percussive drilling systems, automated rod handling, and adjustable mast angles for precision work.
Because soil nailing is a top-down construction method, stabilization progresses as excavation advances. This makes the equipment central to safe slope reinforcement and deep excavation support.
Importance
Soil nailing rigs play a key role in infrastructure stability and risk mitigation. Rapid urban development and transportation expansion have increased the need for excavation in challenging terrains. Without reinforcement, slopes and cuttings can fail due to gravity, rainfall infiltration, or seismic forces.
The importance of soil nailing rigs can be understood through several factors:
Slope Stabilization
Highway and railway projects often require cutting through hillsides. Soil nails prevent soil movement and reduce landslide risk.
Urban Excavation Safety
In densely populated cities, deep foundation pits are common for basements and underground utilities. Soil nailing helps maintain lateral earth support while construction progresses.
Disaster Risk Reduction
Regions prone to heavy rainfall or earthquakes benefit from reinforced slopes to reduce erosion and collapse.
Space Efficiency
Compared to large retaining walls, soil nailing systems use less surface area, making them suitable for narrow construction zones.
The impact extends to:
-
Civil engineers and geotechnical consultants
-
Construction contractors
-
Infrastructure planners
-
Public authorities responsible for road and rail safety
A simplified comparison of stabilization methods is shown below:
| Method | Excavation Type | Space Requirement | Adaptability to Soil | Construction Speed |
|---|---|---|---|---|
| Soil Nailing | Top-down | Low | High | Moderate to Fast |
| Retaining Wall | Bottom-up | Medium to High | Moderate | Moderate |
| Anchored Sheet Piles | Top-down | Medium | Moderate | Moderate |
| Gravity Wall | Bottom-up | High | Low to Moderate | Slower |
This table shows that soil nailing rigs support a flexible and efficient approach in many scenarios.
Recent Updates
Over the past year, several trends have influenced soil nailing rig development and usage.
Increased Automation
Manufacturers have introduced semi-automated rod handling and digital drilling parameter monitoring. These features improve precision and reduce manual handling risks.
Data-Driven Geotechnical Monitoring
Rigs are increasingly integrated with digital logging systems. Drilling data such as torque, penetration rate, and depth can be recorded and analyzed for quality control.
Focus on Emission Reduction
Construction equipment is gradually shifting toward lower-emission engines and hybrid hydraulic systems. This aligns with broader environmental standards in infrastructure projects.
Compact Rig Designs
Urban projects demand smaller machines that can operate in restricted areas, including under bridges and inside confined excavation pits.
Climate Resilience Projects
Infrastructure agencies are prioritizing slope stabilization in flood-prone and erosion-sensitive regions, increasing demand for soil reinforcement solutions.
A simplified trend overview:
| Trend Area | Key Development | Practical Impact |
|---|---|---|
| Automation | Digital drilling controls | Improved accuracy and safety |
| Environmental Standards | Low-emission engine integration | Reduced environmental footprint |
| Monitoring Technology | Real-time drilling data logging | Better quality assurance |
| Compact Equipment | Smaller crawler-based rigs | Access to tight urban sites |
These updates indicate a shift toward safer, data-informed, and environmentally responsible geotechnical operations.
Laws or Policies
Soil nailing rigs operate within broader construction and environmental regulatory frameworks. While specific rules vary by region, common regulatory themes include:
Construction Safety Regulations
Workplace safety standards govern drilling operations, equipment maintenance, and operator training. Personal protective equipment, machine guarding, and safe excavation procedures are typically mandatory.
Geotechnical Design Codes
Engineering codes specify design requirements for slope stability, load factors, and reinforcement spacing. Soil nailing designs must meet established structural and geotechnical standards.
Environmental Protection Rules
Drilling activities may require sediment control measures, noise management, and proper disposal of drilling slurry to prevent environmental contamination.
Infrastructure Approval Procedures
Large transportation and urban development projects often require geotechnical assessments before approval. Soil stabilization plans are reviewed to ensure public safety.
Seismic and Disaster Management Guidelines
In earthquake-prone or landslide-prone areas, stabilization methods must comply with seismic performance standards.
Compliance ensures:
-
Reduced accident risk
-
Improved long-term structural performance
-
Environmental protection
-
Accountability in public infrastructure
Engineers typically coordinate with regulatory authorities and follow standardized documentation procedures to maintain compliance.
Tools and Resources
Several tools and resources support professionals working with soil nailing rigs and slope stabilization systems.
Geotechnical Design Software
-
Slope stability analysis software
-
Finite element modeling tools
-
Ground reinforcement simulation platforms
Digital Drilling Data Systems
-
Onboard rig monitoring consoles
-
Data logging modules
-
Cloud-based geotechnical reporting tools
Engineering Guidelines and Technical Manuals
-
National infrastructure design codes
-
Geotechnical engineering textbooks
-
Construction safety manuals
Professional Organizations
-
International geotechnical associations
-
Civil engineering societies
-
Infrastructure research institutes
Field Testing Equipment
-
Inclinometers for slope movement monitoring
-
Load testing equipment for soil nails
-
Groundwater monitoring devices
Below is a simple workflow chart describing how these tools integrate into a project:
Project Planning → Site Investigation → Design Modeling → Rig Drilling Operations → Nail Installation → Load Testing → Monitoring and Maintenance
Each stage uses different resources, from soil investigation reports to digital drilling logs.
By combining proper equipment with analytical tools, engineers can achieve consistent and measurable stabilization outcomes.
FAQs
What is the main function of a soil nailing rig?
A soil nailing rig drills angled holes into slopes or excavation faces so reinforcing bars can be installed and grouted. This strengthens the soil mass and improves stability.
How is soil nailing different from ground anchoring?
Soil nailing is generally passive reinforcement installed during excavation, while ground anchors are typically tensioned and designed to actively resist loads.
Can soil nailing be used in all soil types?
It works well in cohesive soils, weathered rock, and some granular soils. Extremely loose or saturated soils may require additional stabilization methods.
Is soil nailing suitable for earthquake-prone areas?
Yes, when designed according to seismic standards. Reinforced soil systems can improve slope performance during ground movement.
How is performance monitored after installation?
Engineers may conduct pull-out tests, monitor slope displacement using inclinometers, and perform visual inspections to ensure long-term stability.
Conclusion
Soil nailing rigs are essential machines in modern geotechnical engineering. They enable the reinforcement of slopes and excavations in a controlled and efficient manner. By drilling and supporting soil with steel reinforcement and grout, these rigs help prevent landslides, improve excavation safety, and support infrastructure development.
Current trends show a shift toward automation, digital monitoring, compact equipment design, and environmental responsibility. Regulatory frameworks ensure safe operations and structural reliability, while engineering tools and software enhance planning and execution.
Understanding how soil nailing rigs function, why they matter, and how they are regulated provides clarity for engineers, planners, and the general public. As infrastructure demands continue to grow, slope stabilization technologies will remain a foundational component of safe and sustainable construction practices.
